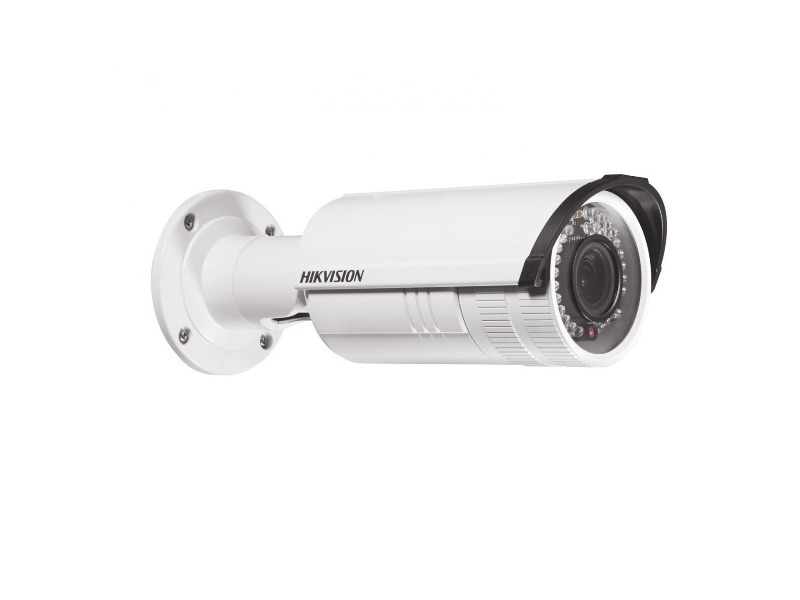

    DS-2CD2632F-IS

    DS-2CD2632F-IS

    MCDS-2CD2632F-IS
    • 1.3Megapixel video resolution
    • HD real-time video streaming
    • Vari-focal lens 2.8 ~ 12mm
    • Up to 30m effective distance
    • IP66 standard resistance casing
    • PoE (Power over Ethernet)
    • Onboard storage (up to 64GB)

    Product Description

      DS-2CD2632F-IS


    Specification

    Camera
    Item Description
    Image Sensor 1/3” progressive scan CMOS
    Min.illumination 0.07 lux @F1.2, AGC ON, 0 lux with IR
    Shutter Speed 1/25s (1/30s) ~ 1/100,000s
    Lens 2.8 - 12 mm @ F1.4,Angle of view: 105.2°-31.9°
    Lens Mount Φ14
    Day &Night ICR
    Digital Noise Reduction 3D DNR
    Wide Dynamic Range Digital WDR
    Backlight compensation Yes, zone configurable


    Compression Standard
    Item Description
    Video Compression H.264 / MJPEG
    H.264 Compression Type Main profile
     Bit Rate 32 Kbps ~ 16 Mbps
    Audio Compression G.711 / G.726 / MP2L2
    Audio Bit Rate 64 Kbps (G.711) / 16 Kbps (G.726) / 32-128 Kbps (MP2L2)


    Item Description
    Max. Resolution 2048 × 1536
    Frame Rate 50Hz: 20fps (2048 x 1536), 25fps (1920 × 1080), 25fps (1280 x 720)
    60Hz: 20fps (2048 x 1536), 30fps (1920 × 1080), 30fps (1280 x 720)
    Image Settings Rotate mode, Saturation, brightness, contrast, sharpness adjustable through client software or web browser
    ROI Yes, up to 4 configurable areas


    Network
    Item Description
    Network Storage NAS
    Alarm Trigger Motion detection, Tampering alarm, Network disconnect, IP address confict, Storage full , Storage error
    Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
    System compatibility ONVIF, PSIA, CGI, ISAPI
    General functionalities User authentication, watermark, dual stream


    Interface
    Item Description
    Communication Interface 1 RJ45 10 M / 100 M Ethernet port
    On-board storage Built-in Micro SD / SDHC / SDXC card slot, up to 64 GB


    General
    Item Description
    Operating Conditions -30 °C ~ 60 °C (-22°F ~ 140 °F)
    Humidity 95% or less (non-condensing)
    Power Supply 12 VDC ± 10% , PoE (802.3af)
    Power Consumption Max. 5.5W (7.5W with ICR on)
    Ingress Protection level IP66
    IR Range Up to 30m
    Dimensions 95 × 105 × 258.6 mm (3.74” × 4.13” × 10.18”)
    Weight 1200g
