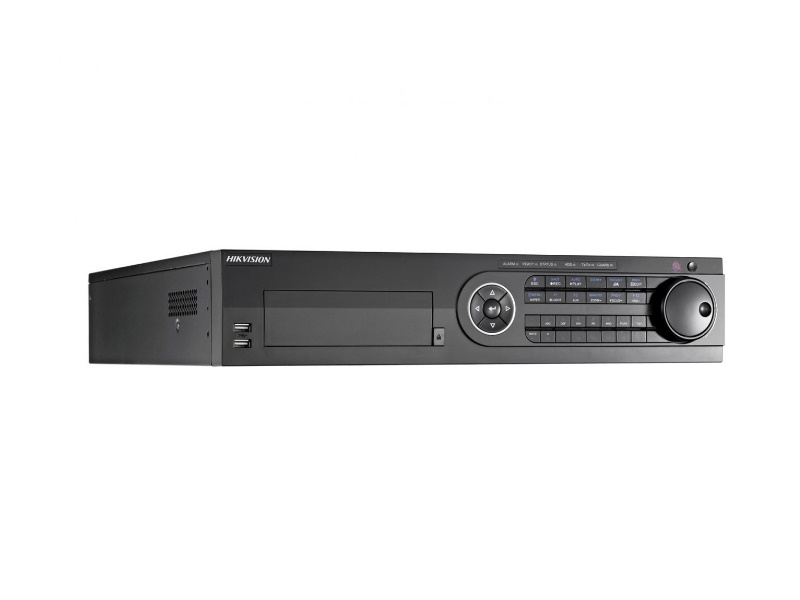

    DS-8108HQHI-SH

    DS-8108HQHI-SH

    MCDS-8108HQHI-SH
    8CH 1080P Turbo HD DVR
    • Connectable to HD-TVI, IP and analog cameras
    • Connectable to the Coaxitron camera/dome with long transmission distance
    • Simultaneous HDMI, VGA and CVBS outputs
    • 2 self-adaptive 10M/100M/1000M network interfaces
    • Provide up to 8 SATA interfaces and 1 eSATA interface

    Product Description

      DS-8108HQHI-SH


    Specification

    Video / Audio Input
    Item Description
    Video compression H.264
    Analog and HD-TVI video input 8CH, BNC interface (1.0Vp-p, 75 Ω)
    Supported camera types 720P/25, 720P/30, 50, 60, 1080P/25, 1080P/30, CVBS
    IP video input 2-ch, (up to 10-ch), 2MP resolution
    Audio compression G.711u
    Audio input / Two-way audio input 8-ch, RCA (2.0 Vp-p, 1 KΩ)


    Video / Audio Output
    Item Description
    CVBS output Support
    HDMI / VGA output 1920 x 1080/60 Hz ,1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
    Ecoding resolution Main stream: 1080P / 720P / VGA / 4CIF / CIF
    Sub stream: WD1(non-real time) / 4CIF(non-real time) / CIF / QCIF / QVGA
    Frame rate Main stream: 1/16fps to Real-time frame rate
    Sub stream: 1/16fps to Real-time frame rate
    Video bitrate 32kbps to 10Mbps
    Audio output 2-ch, RCA(Linear, 1KΩ, for VGA output and CVBS output respectively)
    Audio bitrate 64kbps
    Dual stream Support
    Stream type Video, Video & Audio
    Synchronous playback 8-ch
    Playback resolution 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / CIF


    Network Management
    Item Description
    Remote connections 128
    Network protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS


    Hard Disk
    Item Description
    SATA 8 SATA interfaces; 1eSATA interface
    Capacity Up to 4 TB capacity for each disk


    External Interface
    Item Description
    Network interface 2x 10M / 100M / 1000M self-adaptive Ethernet interface
    Serial interface 1 standard RS-232, RS-485, keyboard
    USB port 3× USB2.0
    Alarm in/out 16 / 4


    General
    Item Description
    Power supply 100 ~ 240VAC, 47 ~ 63Hz
    Consumption (without hard disks) ≤ 45W
    Working temperature -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
    Working humidity 10% ~ 90%
    Chassis 19-in rack mounted 1.5U chassis
    Dimensions (W × D × H) 445 x 470 x 90mm
    Weight (without hard disks) ≤ 8Kg (17.6lb)
