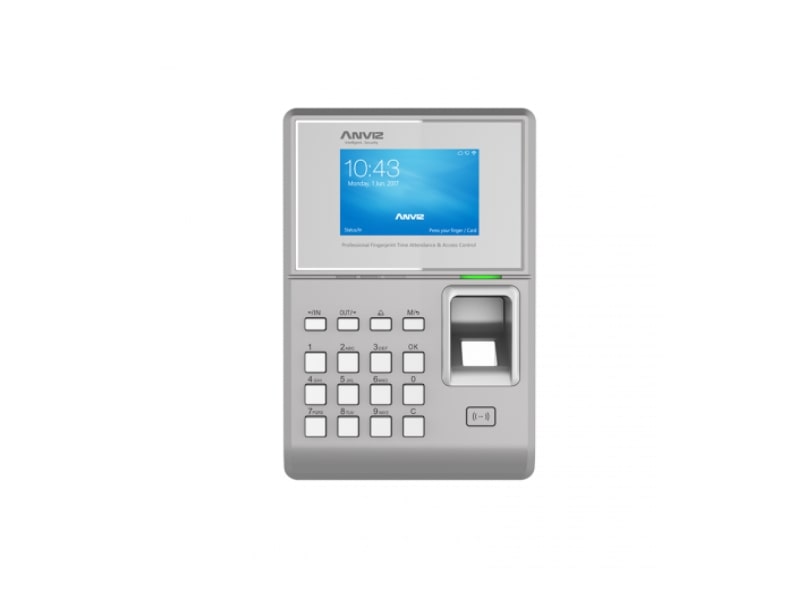

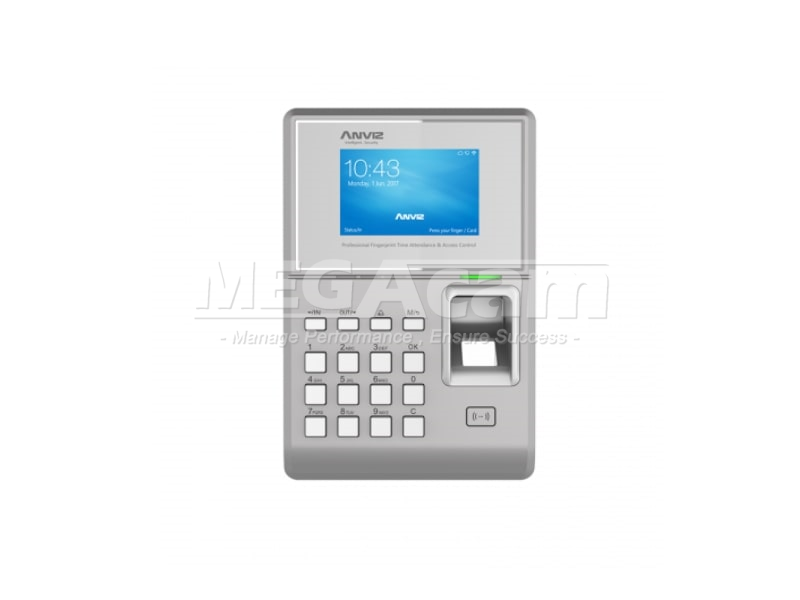

    TC 580

    Product Description

      TC580


    Features

    • Linux platform & Dual 1.0GHz CPU to provide a safe and stable performance
    • Comparison time less than 0.5s
    • Ergonomic design with new keypad provides a better user experience
    • AFOS the lastest fingerprint sensor, touch on activation infrared, optical imaging technology
    • Standard WiFi, Optional 3G
    • Provide relay output for standalone Access Control
    • Support Wiegand, RS485 and USB-host extended communication
    • HD and brighter 3.2 inch color display
    • Ease the experience of user by brand new UI design
    • PoE(Power Over Ethernet) fast & easy installation

    Item Description
    Max User  10000
    Max Template  10000(1:N)
    Max Log 200000
    Comm.  PoE-TCP/IP, USB Host, Mini USB, RS485 Standard WiFi, Optional 3G
    Relay 1 Relay
    I/O  Wiegand In&Out, Door Open Sensor, Tamper Alarm, Exit Button
    Identification Mode  Fingerprint, Card, Password
    Verification Speed <0.5 Sec
    Fingerprint Image Display Yes
    Self-defined Status 8 attendance status auto switch
    Webserver Internal Webserver
    Software Anviz Crosschex Cloud
    Platform Linux
    CPU Dual 1.0 GHz High Speed CPU
    Flash 8GB
    Sensor AFOS Touch Active Sensor
    LCD 3.2” HD TFT LCD
    LED Three-color indicator light
    RFID Card  Standard 125KHz EM, Optional 13.56MHz Mifare
    Dimensions 125 x 189 x 35mm (4.9 x 7.4 x 1.4″)
    Operating Temperature  -30°C to 60°C
    Humidity Verification 10% to 90%
    Power DC 12V
    Certificates CE, FCC, RoHS
