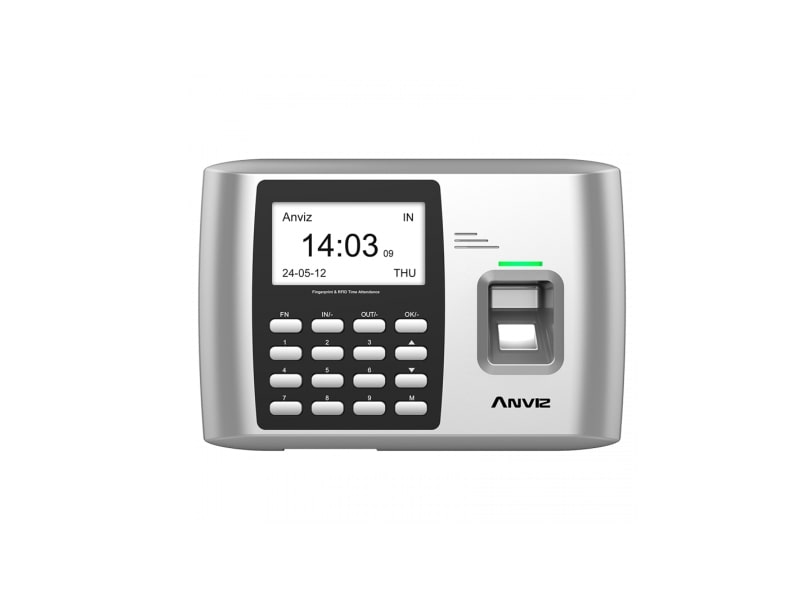

    A300

    Product Description

    A300 Network Topology Illustration

    A300 employs Anviz’ s industry-leading fingerprint algorithm BioNANO. With a waterproof, dustproof and scratchproof fingerprint sensor, A300 offers a perfect time-attendance solution. It support TCP/IP, USB Host, Mini USB, Wifi and Optional RS232 communication for different requirements.


    Features
    • 2,000 Fingerprints, 50,000 Records
    • TCP/IP, Mini USB & USB Host, Optional RS232
    • Relay Output
    • Power Over USB or DC 5V
    • 8 Customizable T&A States, 6-digit Work Code
    • FP, Card ID+FP, ID+PW, PW+Card, FP+Card, FP+PW
    • Standard EM Card, Optional Mifare Card

    Item Description
    Max User 2,000
    Card Capacity 2,000 (Optional)
    Max Log 50,000
    Comm TCP/IP, USB Host , Mini USB, Wifi and Optional RS232
    Relay Relay Output
    Identification Mode FP, Card, ID+FP, ID+PW, PW+Card, FP+Card
    Verification Speed <0.5 Sec
    Fingerprint Image Display Yes
    Self-defined Status 8
    Workcode Yes
    Software Anviz Crosschex Standard
    CPU 32-bit High Speed CPU
    Sensor AFOS
    Scan Area 22m * 18mm
    Resolution 500 DPI
    LCD 128 * 64 White LCD
    RFID Card Standard EM Card, Optional Mifare Card
    Dimensions 200 (w) * 140 (h) * 38(d) mm
    Temperature -30℃~60℃
    Power DC 5V
